Radium Engineering Fuel Pump Hanger - BMW E36

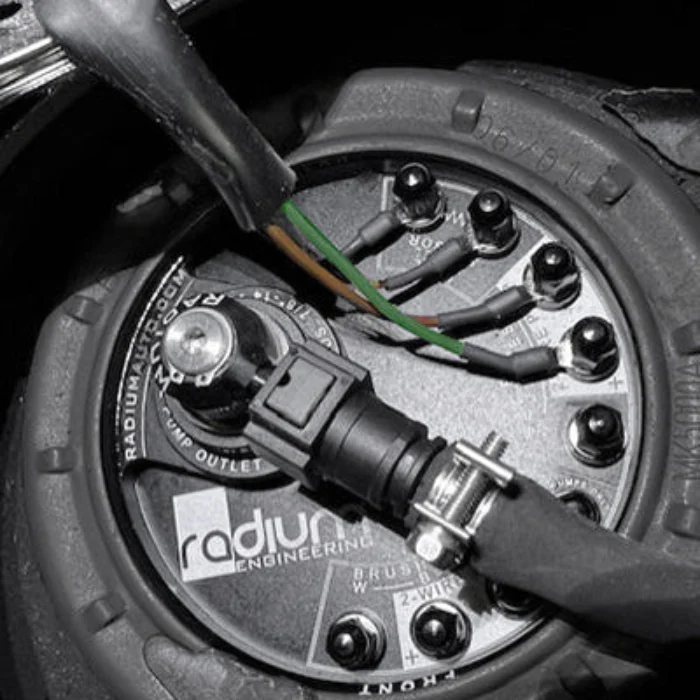

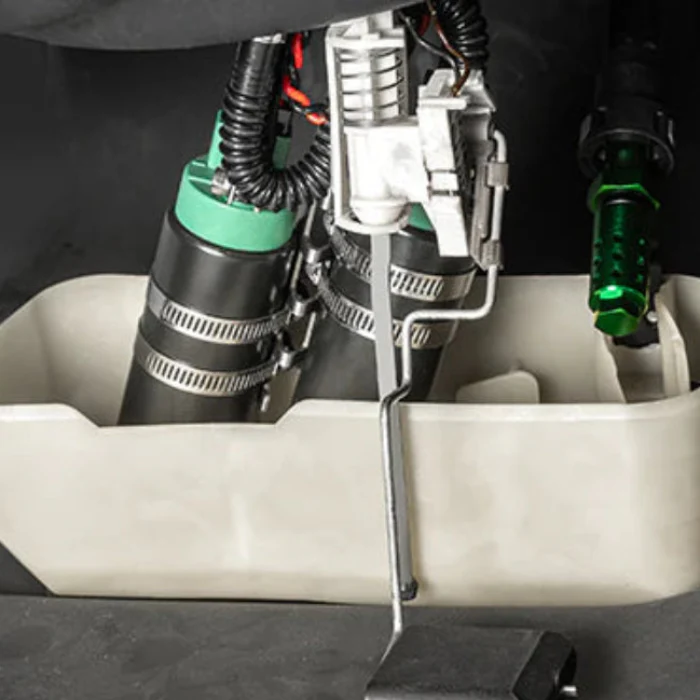

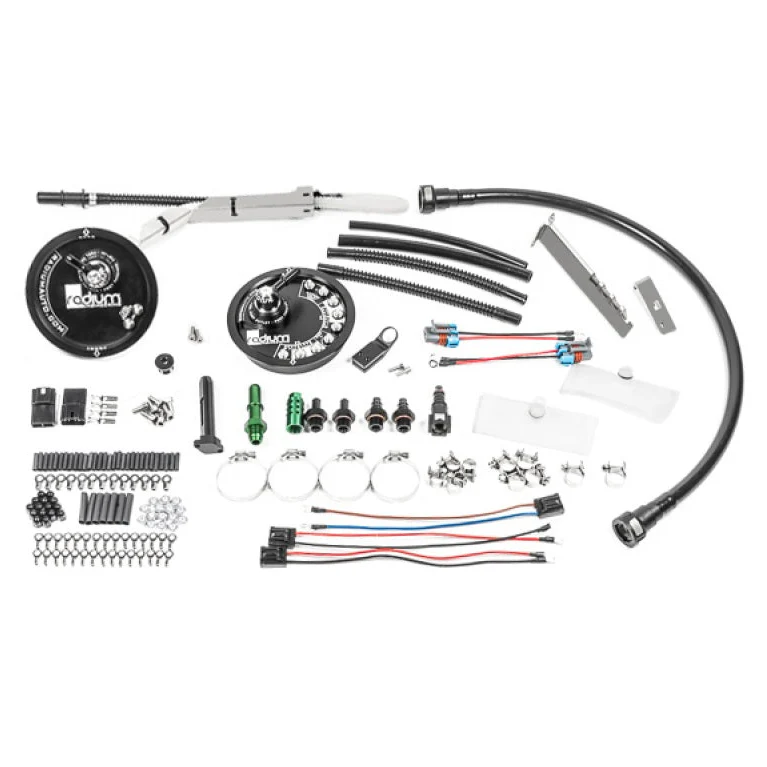

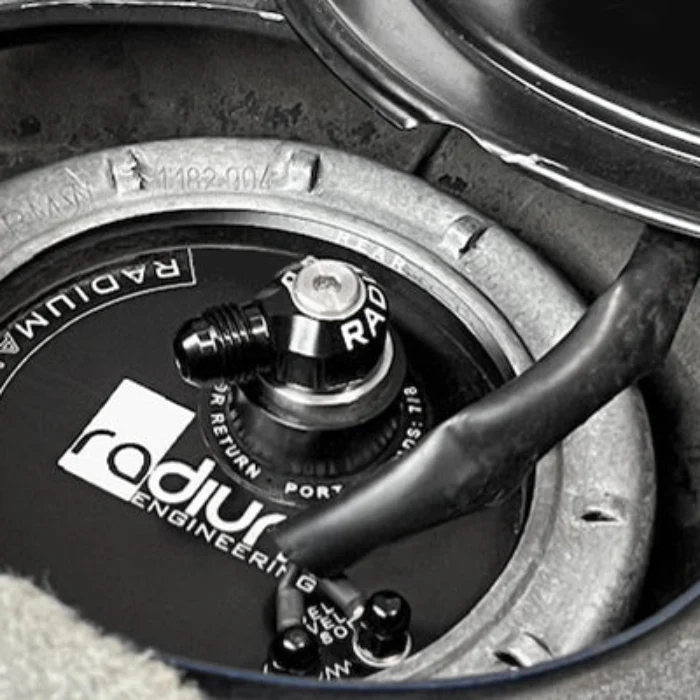

This Radium Engineering fuel hanger replaces both RH and LH fuel hat assemblies. It is compatible with 1 or 2 aftermarket fuel pumps. The kit reuses both passive side and active side fuel level sensors. It is also keeps a true saddle tank crossover system using new improved components. No cutting or modifying of the vehicle is required for installation.

SPECS & FEATURES:

• Drop-In Installation
• Aluminum and Stainless Construction
• PRV Venturi Jet Pump Siphon
• Merged 10AN ORB Female Pump-Out Port
• Compatible with Various Pumps
• Brushless Fuel Pump Capable
• Fuel Pump Filter Socks Included
• Capable of Running 1 or 2 Fuel Pumps
• Anti-Rotation Electrical Terminals
• High Current Electrical Hardware
• Gas, Methanol, and E85 Compliant

Compatible Pumps:

This hanger is configured to be used with 1 or 2 aftermarket fuel pumps. These can be 2-wire brushed fuel pumps or 3-4 wire brushless fuel pumps. Choosing the best fuel pump is based on the expected engine power output, fuel type (gasoline, E85, etc.), and fuel pressure. The following pumps are compatible:

• AEM 50-1000
• AEM 50-1200
• Walbro GSS342
• Walbro F90000267
• Walbro F90000274
• Walbro F90000285
• Walbro F90000295(1)
• Ti Automotive E5LM(1)
• Protec 11928 / Fuelab 49614
• Deatschwerks DW440
• Deatschwerks DW810

This Part Fits:

Year	Make	Model	Submodel
1991-1998	BMW	318i	Base
1991-1997	BMW	318is	Base
1995-1999	BMW	318ti	Base
2000	BMW	323Ci	Base
1998-2000	BMW	323i	Base
1998-1999	BMW	323is	Base
1990-1995	BMW	325i	Base
1990-1995	BMW	325is	Base
1990-1991	BMW	325iX	Base
2000	BMW	328Ci	Base
1996-2000	BMW	328i	Base
1996-1999	BMW	328is	Base
1995-1999	BMW	M3	Base
1995	BMW	M3	Lightweight
