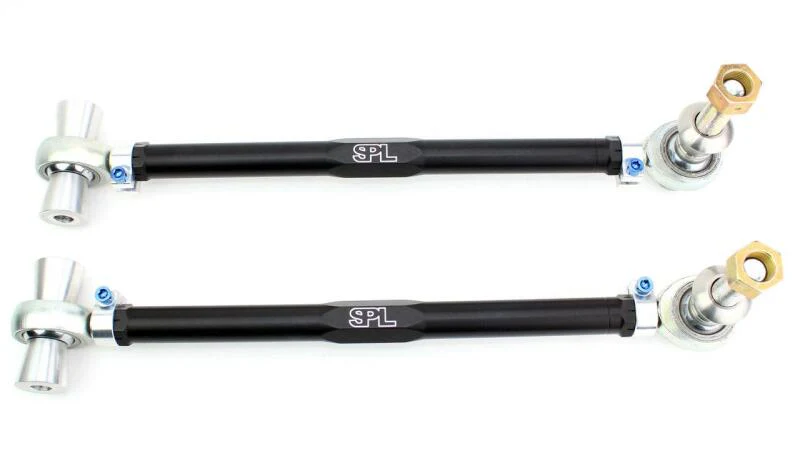

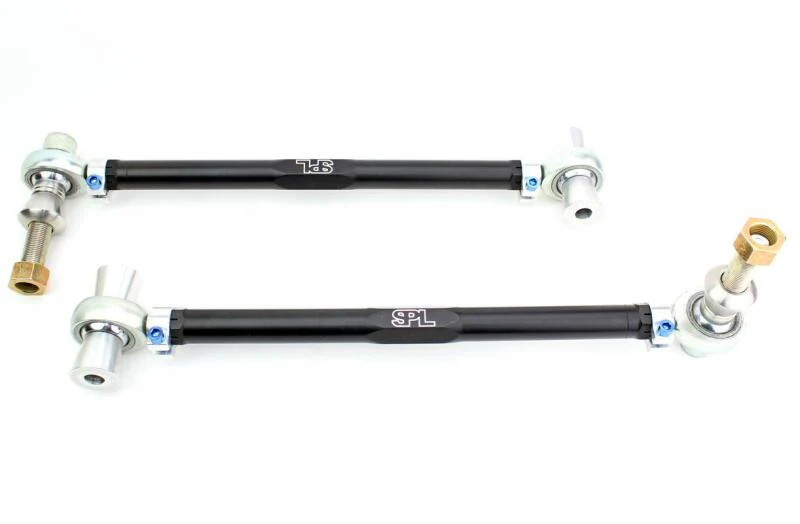

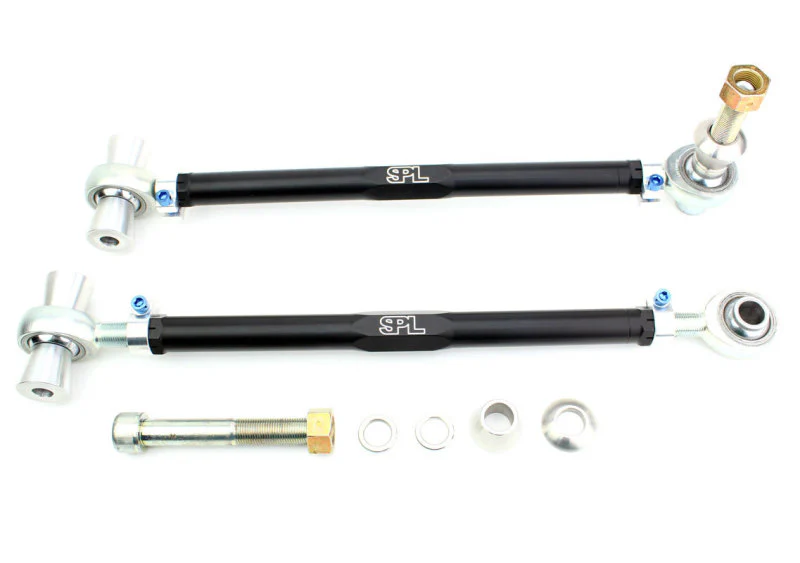

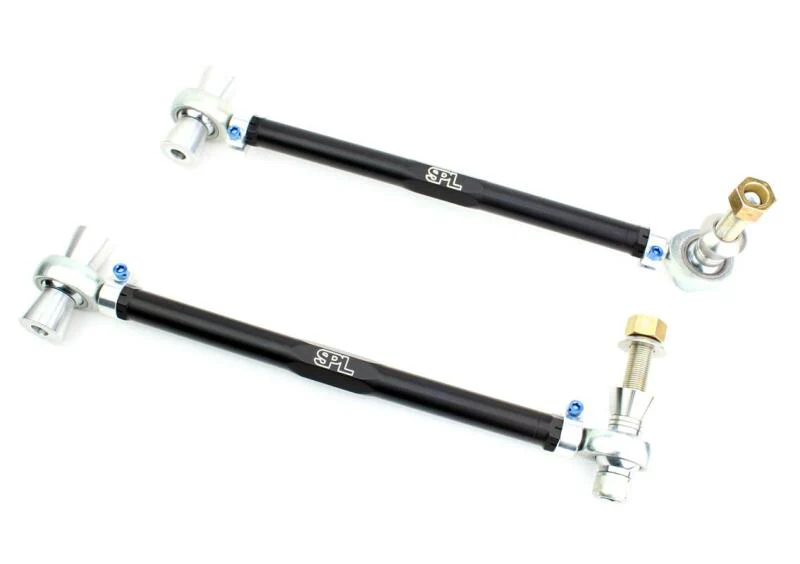

SPL Front Tension Rods - 3 Series/1 Series (E9X/E8X)/F8X

SPL Parts TITANIUM Series Tension Rods (TR) provide a wide range of front caster adjustment, allowing precise alignment for optimal turn-in response and to compensate for variances between left and right caster.  Low-friction, smooth articulating FK Spherical Bearings eliminate the stock mushy rubber bushing to provide a more responsive steering feel.  Anti dive geometry can also be tuned with the use of our stainless steel spacers

Our parts are engineered for maximum performance. Billet Aluminum alloy 2024 hex rods are precision CNC machined and gun drilled to reduce unsprung weight while maintaining high strength and stiffness. Our exclusive 360 degree Rotating Clamp design allows for easy access to quickly and precisely locking in your desired alignment settings.  Blue Anodized Titanium hardware shaves even more unsprung weight from the arms and offers superior strength.

FK Bearings Rod Ends are manufactured in Connecticut. The JMX is an upgraded harden rod end used for superior added strength. Featuring a Teflon liner to provide quiet operation, low friction, smooth articulation and eliminates bushing deflection under load.  The PTFE liner is chemically bonded to the inner diameter of the race. The liner offers a very high load carrying capacity and has greatly increased dynamic wear characteristics. The operating temperatures of the liner ranges from -65º to 325º F, offering robust reliability for both street and track use.

Features:

• Black Anodized and Gun drilled 2024 Aluminum Links
• 6061-T6 Aluminum Rotating Clamp design
• Hardened JMX high misalignment low friction 3 piece Teflon lined FK Heim joints/rod ends
• Stainless steel anti dive spacers
• ASTM A574 socket head cap bolts used for maximum articulation with minimum tensile strength of 170,000 psi

• Made in the USA

Applications:
2006-2013 E9x all 3 Series including M
2008+ E8x all 1 Series including M
2014+ F80 M3
2014+ F82 & F83 M4
2016+ F87 M2

Note:  Will not fit xDrive/AWD vehicles.

BMW E9X/E8X/F8X Tension Rods (TR) provide a wide range of front caster adjustment, allowing precise alignment for optimal turn-in response and to compensate for variances between left and right caster. Low-friction, smooth articulating FK Spherical Bearings eliminate the stock mushy rubber bushing to provide a more responsive steering feel. Anti dive geometry can also be tuned with the use of our stainless steel spacers. Our parts are engineered for maximum performance. Billet Aluminum alloy 2024 hex rods are precision CNC machined and gun drilled to reduce unsprung weight while maintaining high strength and stiffness. Our exclusive 360 degree Rotating Clamp design allows for easy access to quickly and precisely locking in your desired alignment settings. Blue Anodized Titanium hardware shaves even more unsprung weight from the arms and offers superior strength.FK Bearings Rod Ends are manufactured in Connecticut. The JMX is an upgraded harden rod end used for superior added strength. Featuring a Teflon liner to provide quiet operation, low friction, smooth articulation and eliminates bushing deflection under load. The PTFE liner is chemically bonded to the inner diameter of the race. The liner offers a very high load carrying capacity and has greatly increased dynamic wear characteristics. The operating temperatures of the liner ranges from -65º to 325º F, offering robust reliability for both street and track use. Sold as a pair. Made in the USA.

This Part Fits:



Year	Make	Model	Submodel
2011	BMW	1 Series M	Base
2008-2013	BMW	128i	Base
2008-2013	BMW	135i	Base
2013	BMW	135is	Base
2006	BMW	325i	Base
2007-2013	BMW	328i	Base
2006	BMW	330i	Base
2009-2011	BMW	335d	Base
2007-2013	BMW	335i	Base
2011-2012	BMW	335is	Base
2016-2018	BMW	M2	Base
2019-2021	BMW	M2	Competition
2020	BMW	M2	CS
2008-2012,2015-2018	BMW	M3	Base
2015-2020	BMW	M4	Base
2019-2020	BMW	M4	CS
2016	BMW	M4	GTS
